High Volume

Our High Volume W101 & W201 Automatic Rotary Machines offer a low maintenance,
modularly constructed, entirely automatic system. Fill and seal more with less mess and waste!

Click to see our videos

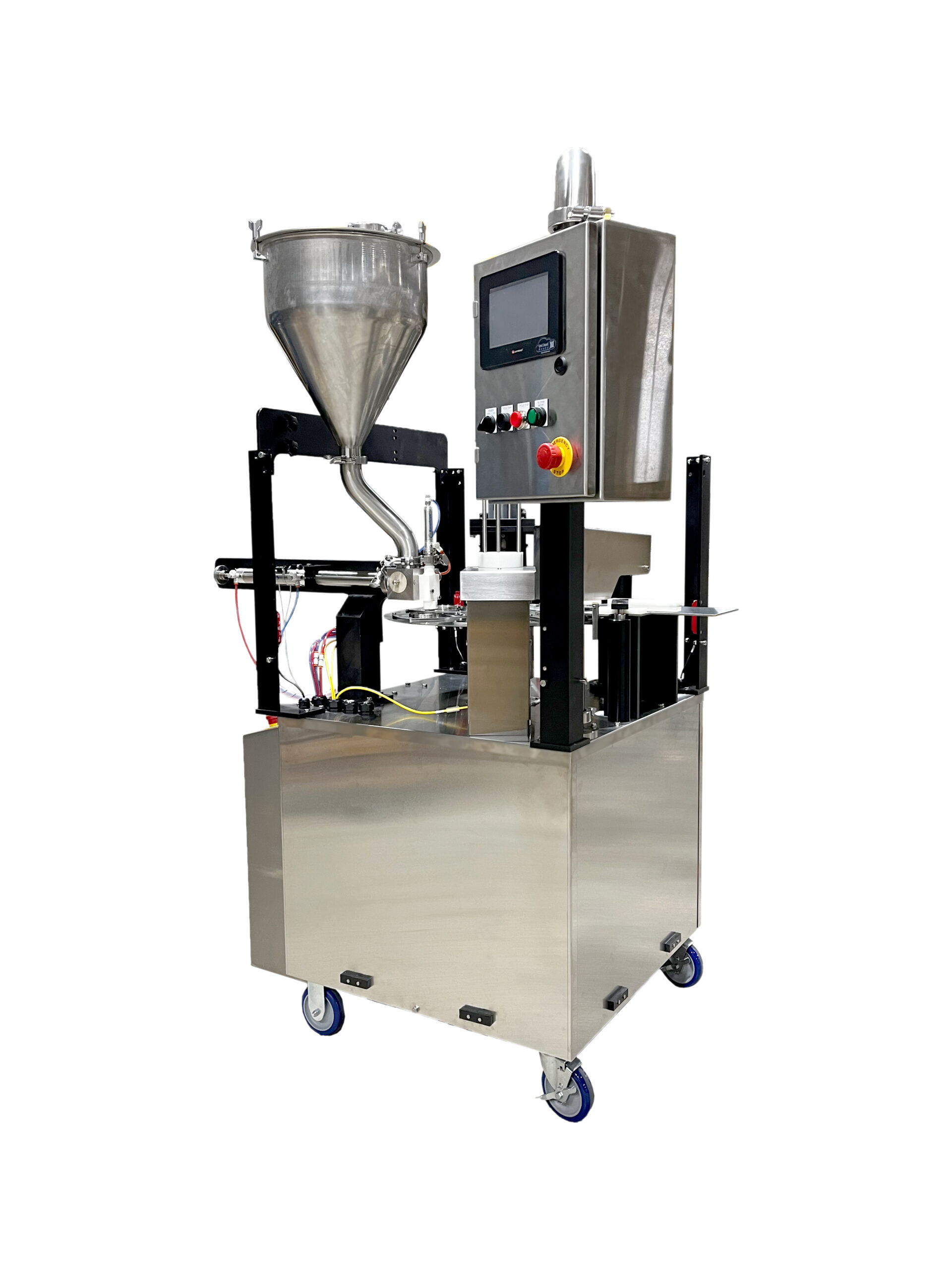

Model W101

Single Lane Rotary Cup Fill and Seal

Please note: The installation of these units require 220V, single-phase electrical power hook up, and 90 PSI of compressed air.

Features Include:

  • Quick adjust height on cup drop
  • 6-1/2 Gallon hopper standard
  • Product inlet on hopper
  • TC Port for Product Level Control Option
  • Perimeter Guarding with safety interlocks
  • Touchscreen HMI mounted on pack off side
  • E-Stop on both sides of machine
  • Variable Speed controlled through HMI Touchscreen
  • Prime/Purge functions through HMI Touchscreen
  • Fine Tuning filling volume
  • Fault Diagnostics
  • Recipe parameter storage for different product runs
  • Up to 40 Containers per minute
  • Container Sizes 51mm to 115mm
  • Operator friendly
  • Quiet in operation
  • Portable (will roll through 36″ doorway with castors)
  • Compact footprint (32” x 41” x 72” high)
  • Low maintenance item
  • Modular construction
  • Durable, lasting capital investment
  • Accommodate quick parts changeovers to different sized containers

Configured into the following 6 Stations:

  1. Cup load – Automatic Cup/Container denesting with height adjustment
  2. Fill Station – Integrated Liquid Piston Fillers or I/O for 3rd Party Dry Fillers
  3. 2nd Fill for larger volumes or additional product
  4. Foil placement – Automatic pick & place with knockoff bell
  5. Heat sealing – Single Cartridge heater head
  6. Unload finished product. Optionally transfers to ancillary equipment.
Rotary Machines Brochure
Custom options
REQUESt A QUOTE

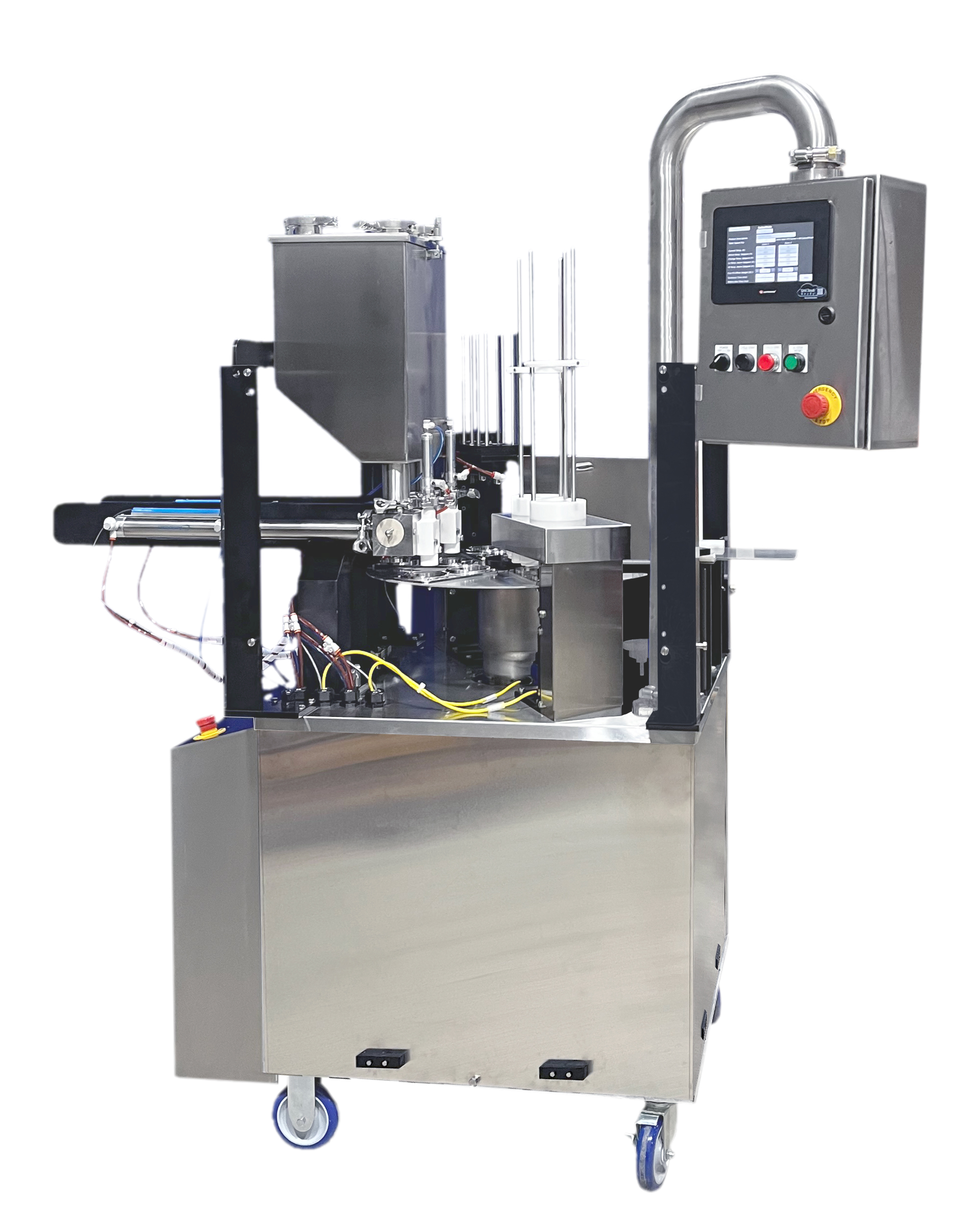

Model W201

Double Lane Rotary Cup Fill and Seal

Please note: The installation of these units require 220V, single-phase electrical power hook up, and 90 PSI of compressed air.

Features Include:

  • Quick adjust height on cup drop
  • 6-1/2 Gallon hopper standard to feed both fillers
  • Product inlet on hopper
  • TC Port for Product Level Control Option
  • Perimeter Guarding with safety interlocks
  • Touchscreen HMI mounted on pack off side
  • E-Stop on both sides of machine
  • Variable Speed controlled through HMI Touch Screen
  • Prime/Purge functions through HMI
  • Fine Tuning filling volume
  • Fault Diagnostics
  • Recipe parameter storage for different product runs
  • Independent Lane Controls (Run either lane by itself)
  • Up to 80 Containers per minute
  • Container diameters 37mm to 75mm
  • Operator friendly
  • Quiet in operation
  • Portable (will roll through 36″ doorway with castors)
  • Compact footprint (32” x 41” x 94” high)
  • Low maintenance item
  • Modular construction
  • Durable, lasting capital investment
  • Accommodate quick parts changeovers to different sized containers.

Configured into the following 6 Stations:

  1. Dual Cup load – Automatic Cup/Container de-nesting with height adjustment – two lanes
  2. Fill Station – Integrated Liquid Piston Filler or I/O for 3rd Party Filler – Outboard Lane
  3. Fill Station – Integrated Liquid Piston Filler or I/O for 3rd Party Filler – Inboard Lane
  4. Dual Foil placement – Automatic pick & place with knockoff bell – two lanes
  5. Dual Heat Sealing – Single Cartridge heater head
  6. Unload finish product. Optionally transfers to ancillary equipment.
Rotary Machines Brochure
CUSTOM OPTIONS
REQUEST A QUOTE

Model P05

Manual pack-off conveyor

Please note: The installation of these units require 110V, single-phase electrical power hook up, and compressed air, which can be fed from the W101 or W201 machine.

  • Conveyor designed to feed from W101 and W201 rotary machines.
  •  Collects and organizes cups into standard grid patterns for boxing.
  • Vacuum paddle picks and places cups from the conveyor to the box.
  • Allows a single operator to pack-off up to 160 cups per minute.
  • Tooling available for 75mm, 60mm, & 51mm cups
  • Height adjustable conveyor.
  • Heavy duty stainless steel construction, made in the USA!

5 ft. Pack-off Conveyor

  • Optimal for packing-off (1) W101 or W201 machine.
  • Can be paired with additional conveyor(s) to pack-off multiple W101 or W201 machines at a time.
  • Can be paired with roller conveyor for printing date codes on the bottom, top, or side of the cups.
  • Uses posi-lock swivel castors for easy re-location and maneuvering.

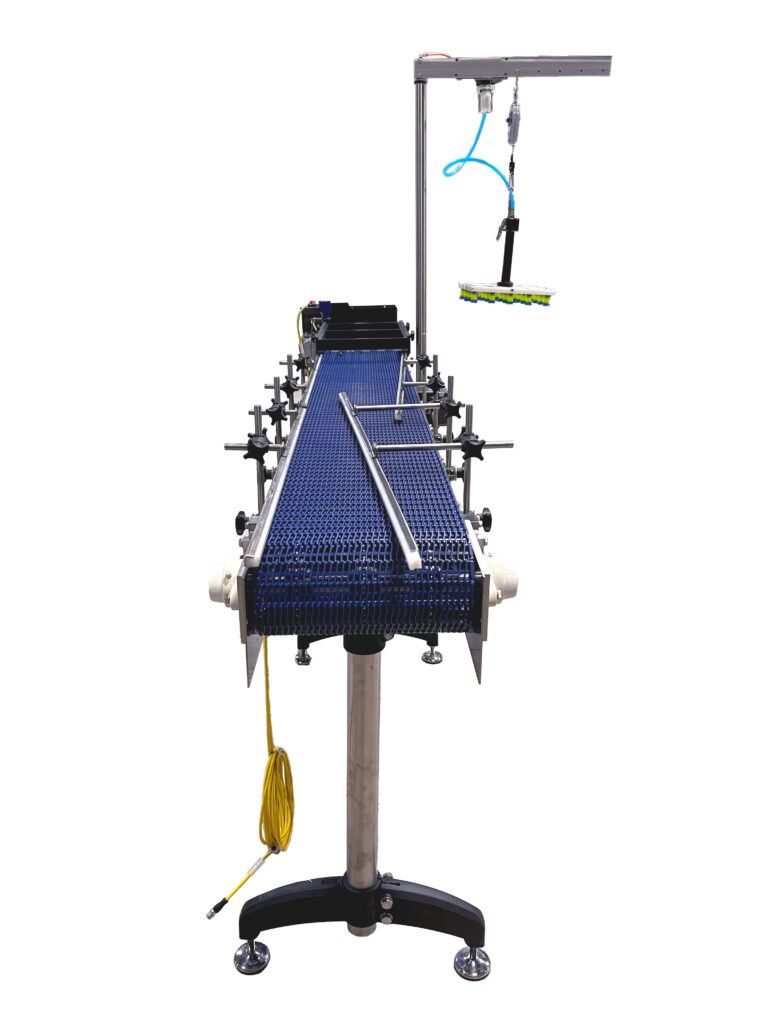

10 ft. Pack-off Conveyor

  • Optimal for packing-off (3 or fewer) W101 or W201 machines.
  • Uses mounting pads for precise leveling.
  •  Capable of allowing date code printing on the side of cups.
REQUEST A QUOTE
